Overseas School and City Project Construction: Domestic Cables Showcase the Strength of Chinese Manufacturing
Supplying cables to an overseas school is a fundamentally different type of business compared to selling them for use on a standard production line. Schools are public buildings characterized by high foot traffic, concentrated power consumption, and exceptionally stringent safety requirements. In a single classroom, dozens of lights and electrical outlets may be in use simultaneously; meanwhile, the facility as a whole relies on power for lighting, air conditioning, elevators, kitchens, laboratories, and fire safety systems—with electrical lines extending into virtually every corner of the building. At the heart of this infrastructure are two ubiquitous types of cables: BV wires, used for indoor electrical wiring, and YJV cables, employed for primary power distribution. A school’s electrical system can be simplified into a three-tier structure: main lines (incoming power and inter-floor distribution), branch lines (distribution circuits for individual rooms), and terminal connections (the final segments linked to lights, outlets, and switches).
YJV cables serve as "main lines" and "branch lines." These are power cables featuring copper cores, cross-linked polyethylene (XLPE) insulation, and polyvinyl chloride (PVC) sheathing. Typically rated for 0.6/1 kV, they are commonly installed indoors, in tunnels, within cable trenches, or buried directly underground, ensuring the stable transmission of electrical power from the distribution room to individual floors and zones. BV wires, by contrast, function at the "terminal" level. They consist of a single, solid copper conductor with PVC insulation but no outer sheath. Rated for 450/750 V with a maximum long-term operating conductor temperature of 70°C, they are primarily installed within conduits or cable trunking, facilitating connections for lighting, power outlets, switches, and similar fixed installations. In simple terms, YJV cables act as the "arteries" for bulk power transmission, while BV wires function as the "capillaries" that deliver power to the final points of use. Together—one handling long-distance, high-capacity transmission and the other managing localized distribution—they form a complete and reliable power supply network for a school building.
In fixed installations where wires are run through conduits, BV wires offer excellent cost-effectiveness, reliable termination, and an insulation layer with sufficient flexibility for standard routing. YJV cables, meanwhile, serve as the primary power supply backbone in environments—such as indoor spaces, trenches, tunnels, or direct-burial sites—where they are not subjected to external mechanical impact.

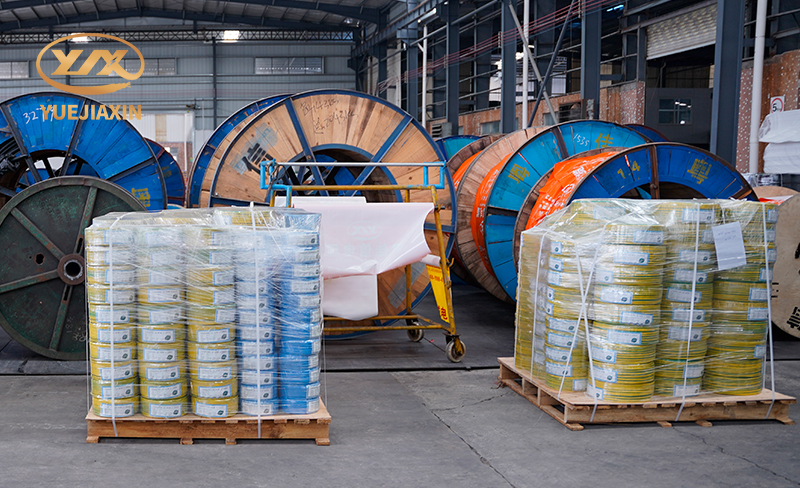

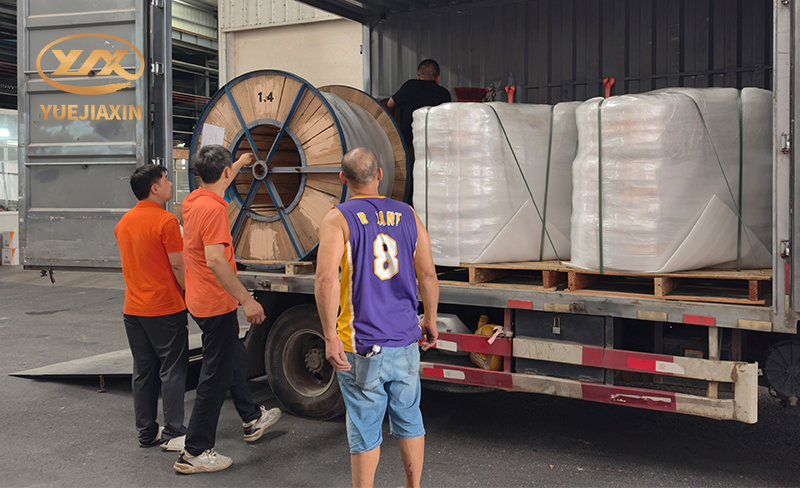

Recently, Yuejiaxin Cable Company exported a batch of BV and YJV cables to Laos for use in a local school construction project. School projects require careful consideration of several key factors. First and foremost is safety; fire-resistance ratings are non-negotiable. Schools accommodate large numbers of minors, and in the event of an electrical fire, evacuation would be significantly more difficult than in a typical office environment. Consequently, branch circuits for lighting and power outlets in schools often require flame-retardant or low-smoke, zero-halogen (LSZH) solutions. Second, both durability and adaptability for future modifications are essential. School buildings frequently undergo renovations, classroom expansions, or reconfigurations, which involve repeated processes of pulling cables through conduits, removing old wiring, and upgrading capacity. With their solid copper conductors and PVC insulation, BV cables offer reliable durability in such environments—all at a cost-effective price point—making them an economical choice for end-use wiring in schools.
With 27 years of deep expertise in the cable industry, Yuejiaxin Cable Company focuses on R&D and manufacturing. We possess extensive experience in exporting electrical cables, having supplied products to numerous countries and regions across Africa, Southeast Asia, and the Middle East. We are a trusted, direct-source manufacturer for all your cabling needs.
